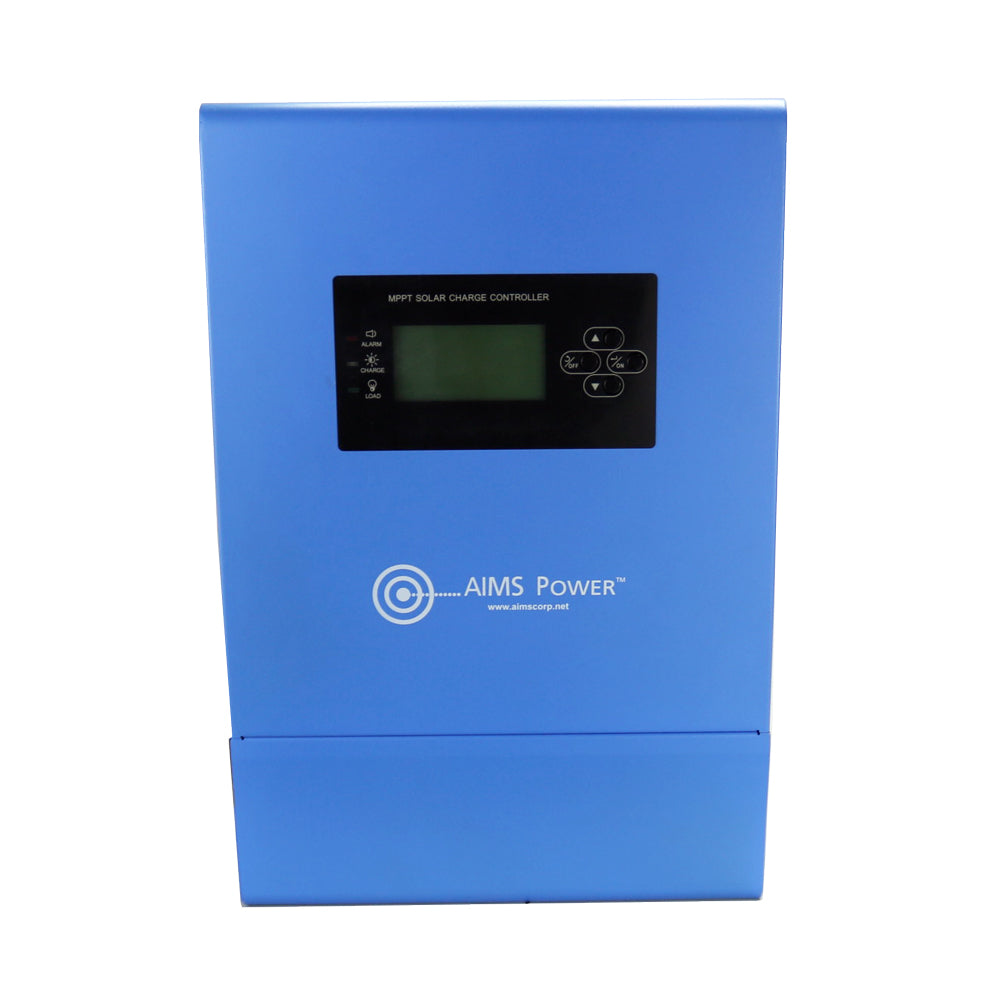

60 AMP Solar Charge Controller 12 / 24 / 36 / 48 VDC MPPT ETL Listed to UL 458 / CSA 22.2
- Free shipping over $200 · ships in 1–2 business days
- Real Canadian stock · ships from our warehouse
- 60-day returns on unopened parts
| Brand | AIMS POWER |
|---|---|
| Part number | APW1004341 |
This solar battery charge controller by AIMS Power features a smart tracking algorithm using MPPT charging technology and has less power loss performing at 97.5-99% efficiency, maximizing energy harvest. The tracking algorithm is automatic and varies with weather conditions. This charge controller also has temperature compensation protection using the included battery temperature sensor. Charges 12, 24, 36 and 48 volt solar systems with multistage charging technology and adjusts according to battery type.
The AIMS charge controller includes LED indicators to show charging status and faults. An LCD displays key information such as:
- battery voltage and capacity
- solar panel voltage and wattage
- solar panel charging current
- KWH produced
- battery charge mode
- DC load (current)
Users are able to revise and set the default parameters according to system design. There is also a RS485 connection block for computer monitoring of all charge controller functions. Backed by a 2 year warranty.
